System information
- (24) tenKsolar 410 watt modules manufactured in Bloomington, MN.
- 9840 total watts of electricity = 9.84 kilowatts (kW)
- Minnesota has an average of 4.6 peak sun hours per day (more than Houston, Texas, and almost as much as Miami, Florida!)
- 9.84 kW x 4.6 hours = 45 kWh/day (avg)
There are losses due to wiring and the inverter, so we might expect 85% of this or 38 kWh/day (~ 1140 kWh/month) produced by this solar system in full sun
Real-Time Usage Report

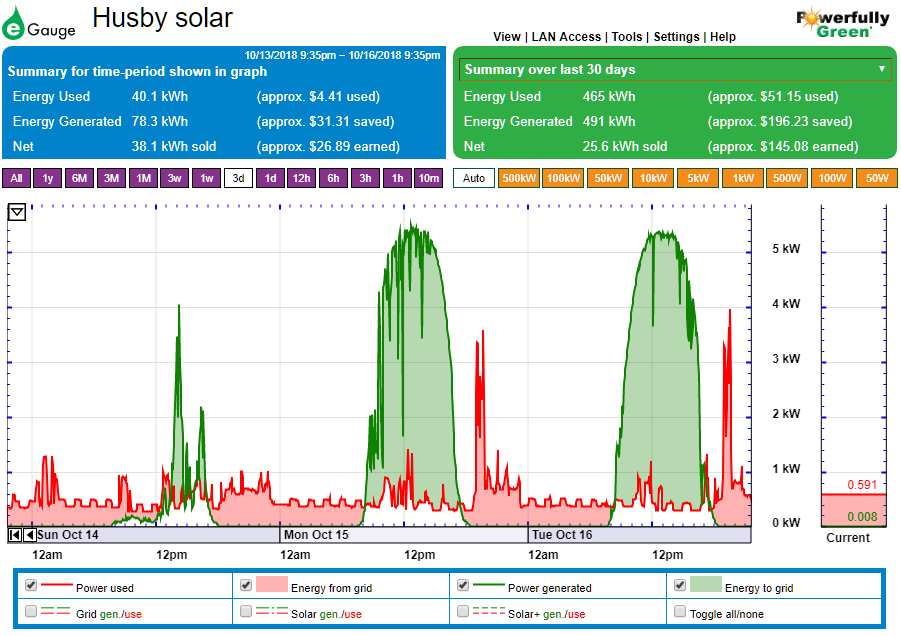

I have an eGauge Data Logger connected to my electrical panel that monitors all electricity generated and consumed in real time:
Solar Panel Specifications
RAIS® XT-A PV Module 410WP by tenKsolar (PDF)
Power Output at STC (Pmax)
410WP
Power Tolerance
+/- 3%
Cell Type
Polycrystalline Silicon
Number of Cells
192 Half Cells
Glass
3.2mm Tempered Glass

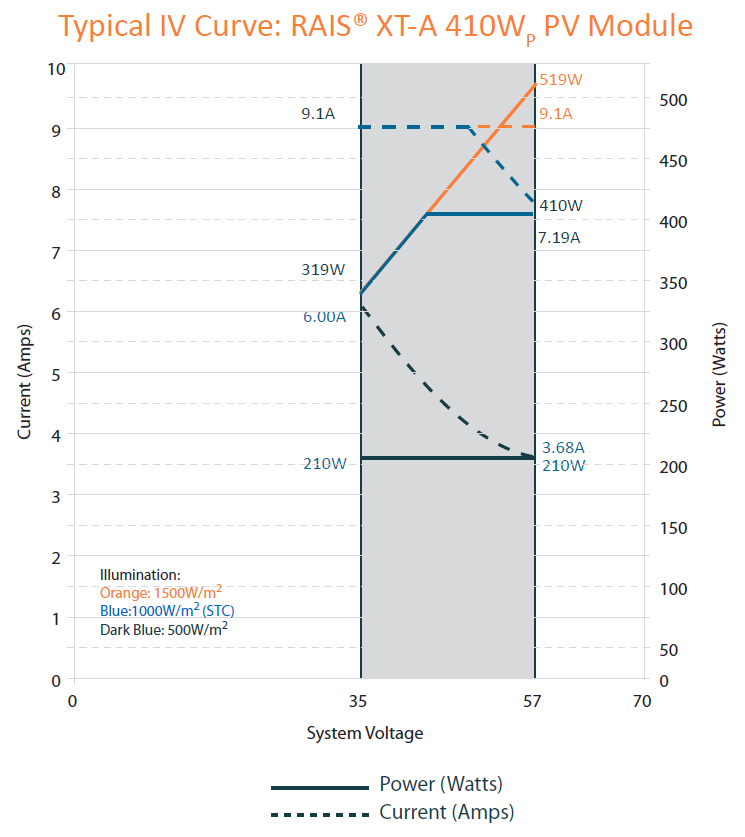

Maximum Current Output
9.1A
Maximum Series Fuse Rating
80A
DC Voltage Output
35V Minimum / 57V Maximum
Ground Fault Detect
Integrated (Compatible w/ Inverter GFDI)
Internal Ground Fault Limit
500 mA

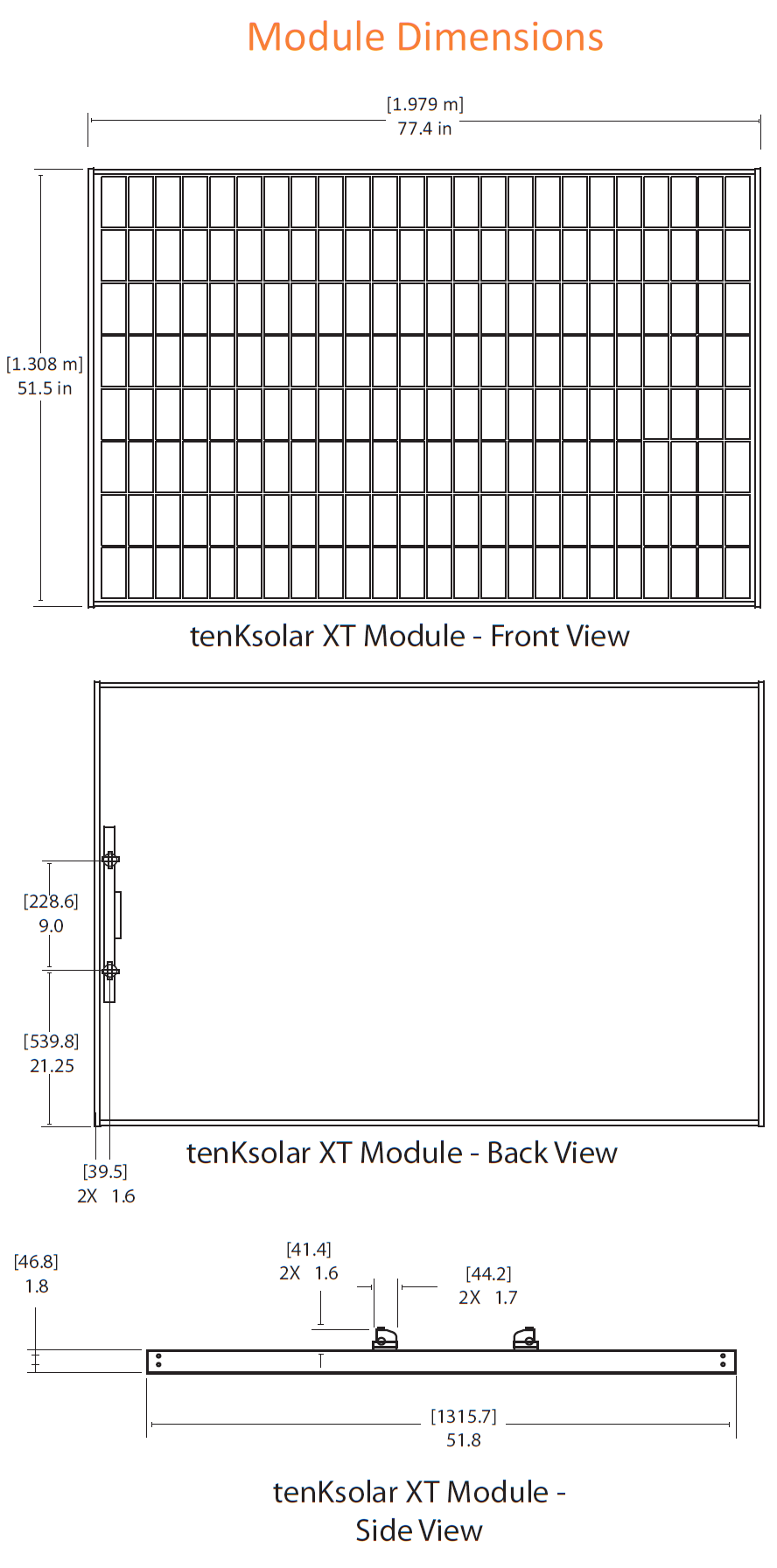

Frame Size (not including optional extensions)
77.4” x 51” (1979mm x 1295mm)
Frame / Background
Silver / White
Backsheet Material
PET Covered Aluminum
Bypass Diodes
None
Ambient Operating Temperature Range
-40°F to 185°F (-40°C to 85°C)
Module NOCT (Nominal Operating Cell Temperature)
109°F (43°C)
Temperature Coefficient
-0.46% / °C
Static Load Capacity
50 psf / 2400 Pa
Hail Resistance
Direct 1” impact at 52mph (84kph)
Weight
71 lbs (32.2 kgs)
Certifications
UL 1703/UL 1741
IEC 61215 EN 61730
Warranty
12 Year Limited Product Warranty, 25 Year Linear Power Warranty:
3% Power Degradation First Year, 0.2% Linear Degradation per year after First Year
Inverter Bus Specifications
240V RAIS Inverter Bus (PDF)
3 buses:
- 2 x 3500W (seven 500W microinverters each)
- 1 x 2500W (five 500W microinverters)
Microinverter Specifications
APS YC500A-K Microinverter (PDF)
Input Data (DC)
Maximum Input Voltage
55V
Maximum Input Current
24A
Output Data (AC)
Rated Output Power
500W
Maximum Output Current – 240V
2.08A
Maximum Output Current – 208V
2.4A
Nominal Output Voltage/Range – 240V
211-264V*
Nominal Output Voltage/Range – 208V
183-233V*
Nominal Output Frequency/Range
60Hz / 59.3-60.5Hz*
Power Factor
> 0.99
Total Harmonic Distortion
< 3%
Maximum Units Per Branch
7 per 20A / 9 per 25A breaker
Efficiency
Peak Efficiency
95.5%
CEC Weighted Efficiency
94.5%
Nominal MPP Tracking Efficiency
99.0%
Mechanical Data
Storage Temperature Range
-40ºF to +185ºF (-40ºC to +85ºC)
Operating Temperature Range (Ambient)
-40ºF to +149ºF (-40ºC to +65ºC)
Operating Temperature Range (Internal)
-40ºF to +185ºF (-40ºC to +85ºC)
Dimensions (WxHxD)
7.9” x 6.3” x 1.1”
Weight
5.5 lbs (2.5kg)
Enclosure Rating
NEMA 3R
Cooling
Natural Convection
Features & Compliance
Communication
Power line
Design Lifetime
25 years
Emissions & Immunity (EMC) Compliance
FCC PART 15, ANSI C63.4 2003, ICES-003
Safety Class Compliance
UL 1741 , CSA C22.2, No. 107.1-01
Grid Connection Compliance
IEEE 1547
* Programmable per customer and utility requirements. All settings UL approved.
Solar Panel Mounting Specifications

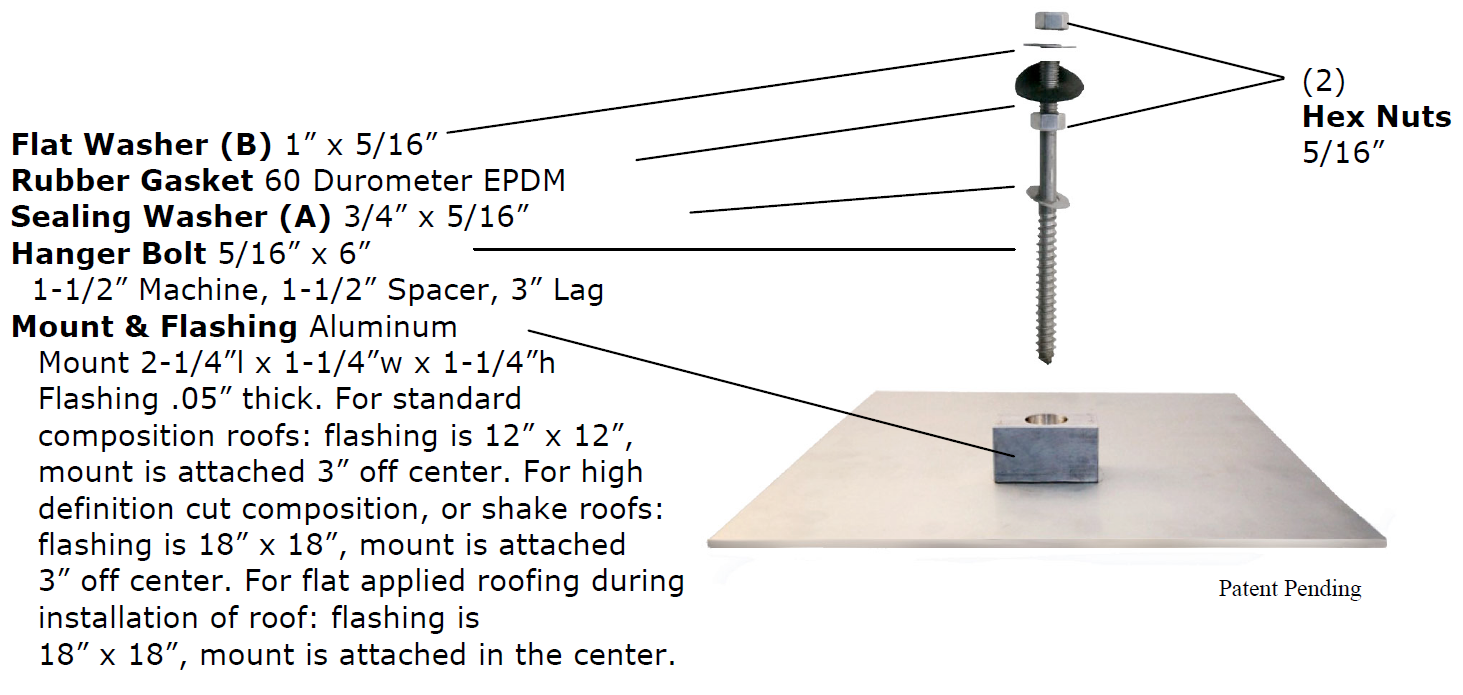

QuickMount PV (PDF)
Roof Mounting Specifications
Series 100 Roof Mount System by SnapNrack (PDF)
- Up to 3” of height adjustability at roof connection
- Waterproof full-metal flashing at each roof penetration
- Works on virtually all composition and tile roofs
- Single wrench size for all system hardware
- Configures easily as low profile or tilt (0-60 Degrees)
- Rail channels provide excellent wire management
Energy Meter Data-Logger Specifications
eGuage (PDF)
Installed by
Powerfully Green
11451 Oregon Ave. N.
Champlin, MN 55316
Phone: 763-438-1976
Fax: 612-605-5748
Email: info@PowerfullyGreen.com
